Condenser Microphones

Condenser microphones have become the cornerstone of professional audio recording, prized for their exceptional clarity, sensitivity, and wide frequency response. These microphones are essential in professional studios and home setups, capturing everything from pristine vocals to detailed instrument recordings.

What is a Condenser Microphone?

A condenser microphone, also known as a capacitor microphone, converts acoustic energy into electrical signals using a capacitor. Unlike dynamic microphones, condenser microphones employ a thin, electrically charged diaphragm that vibrates in response to sound waves, offering superior sensitivity and detail.

How Condenser Microphones Work

The core of a condenser microphone consists of two main components:

1. A thin, intricate diaphragm, usually gold-sputtered mylar (All Warm Audio large-diaphragm condenser mics are made with high-quality gold-sputtered mylar)

2. A fixed backplate

These elements form a capacitor, with the diaphragm acting as one plate and the backplate as the other. Sound waves cause the diaphragm to vibrate, changing the distance between the plates and altering the capacitance, which is then converted into an electrical signal.

Types of Condenser Microphones

Condenser microphones come in various types, each suited for different applications:

Large-Diaphragm Condenser Microphones

Large-diaphragm condensers, like the Warm Audio WA-87 R2 , typically have a diaphragm diameter of 1 inch or larger, with many of the most prized capsules being 34mm in diameter. They are renowned for their warm, full-bodied sound, ideal for recording vocals, acoustic guitars, and room microphones.

Small-Diaphragm Condenser Microphones

Small-diaphragm condensers, such as the Warm Audio WA-84, have a diaphragm diameter of 3/4 inch or less. They offer excellent transient response and are perfect for recording acoustic instruments, such as cymbals, and capturing overall sound in ensemble recordings.

Tube Condenser Microphones

Tube condenser microphones, like the Warm Audio WA-CX12, use vacuum tubes in their circuitry. They are prized for their warm, smooth sound character and often used for vocals and instruments with a desired vintage tone.

Key Features of Condenser Microphones

Several characteristics distinguish condenser microphones:

• Wide Frequency Response - Condenser microphones typically offer a broader frequency response than dynamic microphones, capturing both low and high frequencies with greater accuracy.

• High Sensitivity - Condenser microphones' intricately constructed diaphragms allow them to pick up subtle nuances and details in sound, making them ideal for capturing delicate sources.

• Low Self-Noise - Many high-quality condenser microphones boast very low self-noise, resulting in cleaner recordings, especially when capturing quiet sources.

• Phantom Power Requirement - With the exception of tube condenser microphones that never require phantom power, most other condenser microphones require phantom power (usually +48V) to operate, typically supplied by a mixing console, audio interface, or dedicated power supply.

Applications of Condenser Microphones

Condenser microphones excel in various recording scenarios:

Studio Vocal Recording

The sensitivity and wide frequency response of large-diaphragm condensers like the WA-87 R2 make them ideal for capturing the nuances of a vocalist's performance.

Acoustic Instrument Recording

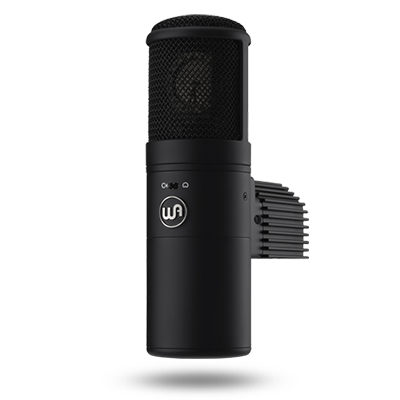

Condenser microphones excel at capturing the full tonal range and subtle details of acoustic instruments, from guitars to pianos to strings. The WA-8000 is particularly well-suited for highly intricate and detailed sound reproduction. On acoustic guitar, it delivers spacious acoustic Tone With High-End Brilliance And Sparkle. Whereas, the WA-47 with its deep bass, rich midrange delivers the smooth and rich tenor of bass strings - ideal for cello and upright bass.

Overhead Drum Miking

Small-diaphragm condenser microphones like the WA-84 are often used as overhead mics for drum kits, capturing the cymbals and overall kit sound with focused detail and clarity.

Podcasting and Voice-over Work

The clarity and sensitivity of condenser microphones make them popular choices for spoken-word applications, ensuring crisp and professional-sounding recordings.

Vintage-Style Recordings

For those seeking a classic, warm sound, tube condenser microphones like the WA-47 can impart a vintage character to recordings, particularly suited for vocals and certain instruments.

Choosing the Right Condenser Microphone

When selecting a condenser microphone, consider the following factors:

Intended Use

Studio microphone use is always contextual. It's not as simple as always assuming that different microphones excel at different tasks. A more practical understanding might be to consider the tonality of the source, the genre of the song, and the overall need to sculpt or manipulate the tonality during the recording process.

Desired Tone & Sound Profile

Condenser microphones reproduce sound broadly across the audible frequency range, with tones ranging from vintage to modern in style. More vintage sounding microphones reproduce warmth, harmonics, lush bass, rich mids and smooth highs, while modern microphones deliver tighter bass, detailed mids, upper-midrange clarity, and pristine highs. Understanding the sound profile that is delivered by your mic’s capsule, circuit, & components can help you achieve the desired outcome without having to do heavy editing in post.

Polar Patterns

Condenser microphones come in various polar patterns, including cardioid, omnidirectional, and figure-8. Choose the pattern that best suits your recording needs.

Budget

Condenser microphones can come at a higher price tag, making them a valuable part of your mic locker. Legendary studio microphones like the Neumann xxx and the AKG xxx can cost over $20,000. Warm Audio makes it possible for more studios than ever to own legitimate versions of the most desirable condenser mics ever invented, at an affordable price. Warm Audio accomplishes this through meticulous component selection, mass manufacturing, low markups, and extremely tight quality control.

Additional Features

Some condenser microphones offer features like switchable polar patterns, high-pass filters, and pad switches. Consider which features are important for your applications.

Maintaining Your Condenser Microphone

To ensure the longevity and performance of your condenser microphone:

1. Store it in a dry environment to prevent moisture damage

2. Use a pop filter when recording vocals to protect the diaphragm

3. Handle the microphone with care, as the internal components are delicate

4. Clean the microphone gently with a soft, dry cloth when needed

Whether you're recording vocals with a large-diaphragm condenser like the WA-87 R2, capturing focused acoustic instruments with a small-diaphragm condenser like the WA-84, or seeking vintage warmth with a tube condenser like the WA-47, these microphones can significantly elevate the quality of your audio productions.
