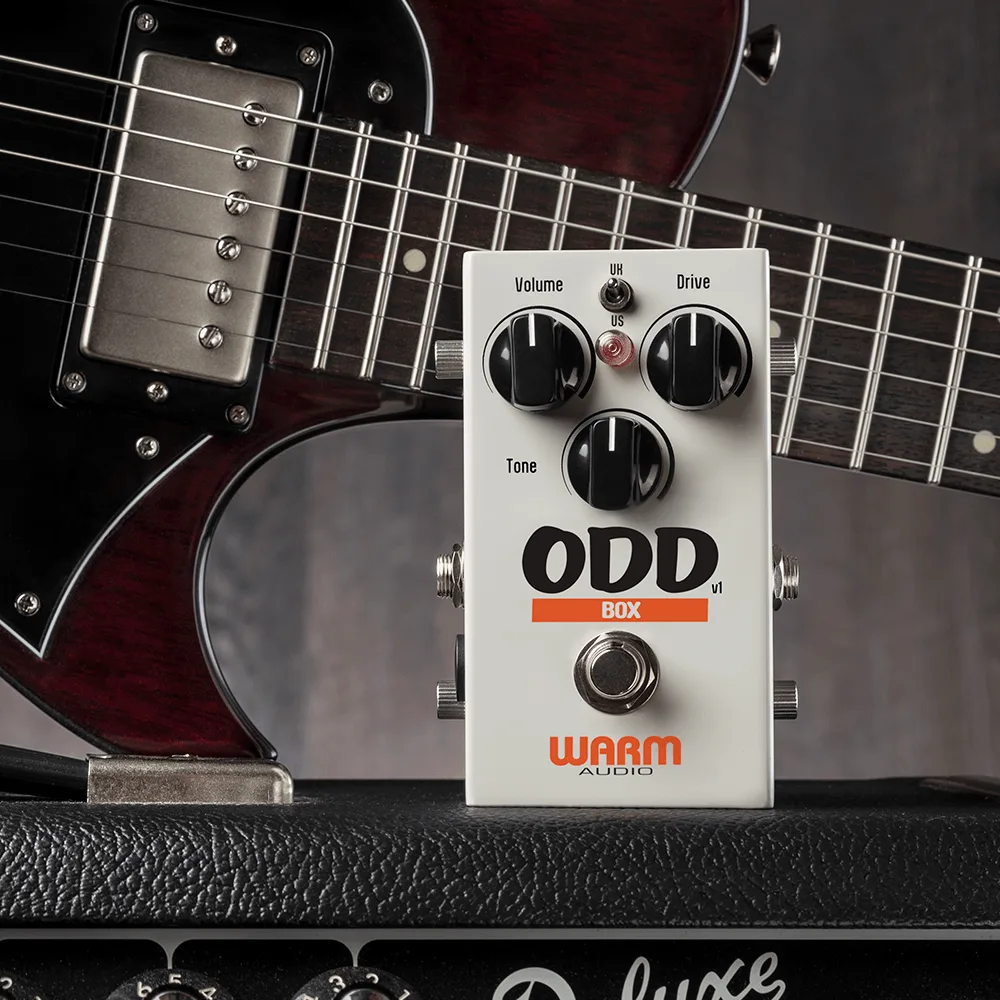

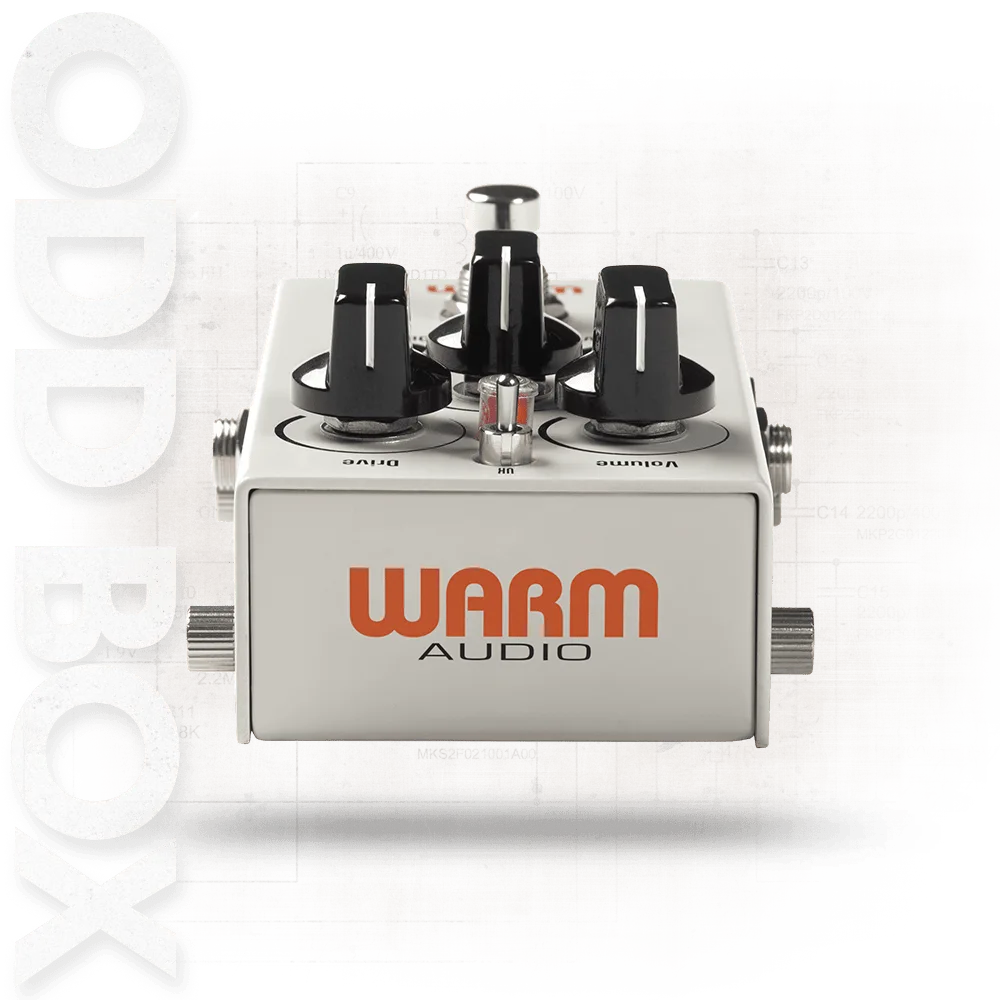

ODD Box v1

Hard-Clipping Overdrive Pedal

Inspired By An Iconic Pedalboard Staple Known For Cranked-Amp Tone

msrp $119


Buy Now


A Must-Have OD Tone Of The 2000s & Beyond

The Warm Audio ODD Box V1 (“ODD” for short) is a hard-clipping, op-amp-based overdrive inspired by an iconic pedalboard staple known for having a “cranked amp” tone. Perfect for boosting, adding breakup, or adding high gain to cleans, the ODD has all the tonal versatility of its inspiration. Delivering all of the sounds of a cranked, saturated tube amp, the ODD features classic-inspired controls, including a UK/US Switch, to flip the personality of ODD from a “British” to an “American” tube amp. True to its inspiration, the ODD delivers the sound of massive, live electric guitar that attracted players like Billy Gibbons, Mark Hoppus, Eric Johnson, J Mascis, Paul Gilbert, and many more to that open tube amp sound.


Cranked Tone On Any Stage

The ODD brings the coveted “amp-in-a-box” tone to any stage or studio. With a high degree of touch sensitivity combined with powerful drive and tone controls - the ODD sounds like a full stack regardless of volume. The added versatility of the UK/US switch ensures that any guitar or amp will deliver a true cranked-amp tone in any setup.

To accurately deliver this artist-favorite tone, the ODD is built with through-hole construction using premium components, including a TLO82CP Op-Amp, 2N7000 transistors, & hand-selected capacitors & resistors.


Pedal Settings & Controls

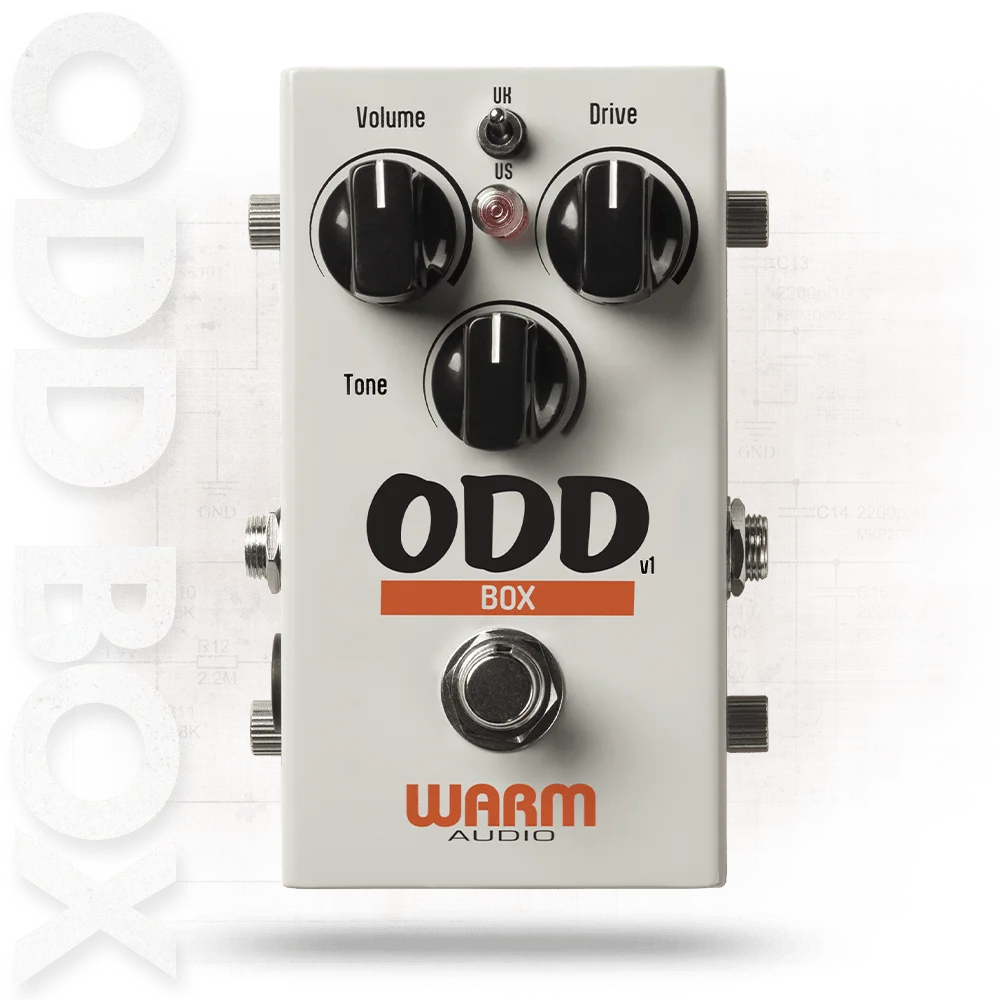

The ODD has three critical OD controls on the front with a special addition. Drive controls the amount of clipping, or “overdrive” tone. The tone control increases treble as you turn it clockwise. The Volume control acts like a master output, increasing volume as you turn it clockwise. The UK/US switch quickly changes the personality of the ODD. The UK setting distorts earlier, bumps the upper mids, and increases volume - giving this setting more of a cranked, "chimey" amplifier tone. The US setting has a little more clean headroom, allowing the ODD to act more like a boost at first, and better aligns with traditional tweed-based "edge of breakup" amplifier tones.
Humbucker Rhythm Tone
Humbucker Lead
Single Coil Blues Tone
*Starting point suggestions. Adjust & experiment to find the right tone.

Technical Specifications

  • Inspired By An Iconic Pedalboard Staple Known For Cranked-Amp Tone

  • Premium Components, Including A TLO82CP Op-Amp, 2N7000 Transistors, & Hand-Selected Capacitors & Resistors

  • Controls: Volume, Drive, Tone, & UK/US Switch

  • Through-Hole Construction

  • True-Bypass Switching

  • 9-Volt Battery Or External 9-18V Regulated DC Adapter (center-negative)

  • Current Draw: 5.5 mA (9V) / 6.5 mA (18V)

  • Custom-Folded Steel Enclosure With A Durable Powder-Coated Finish

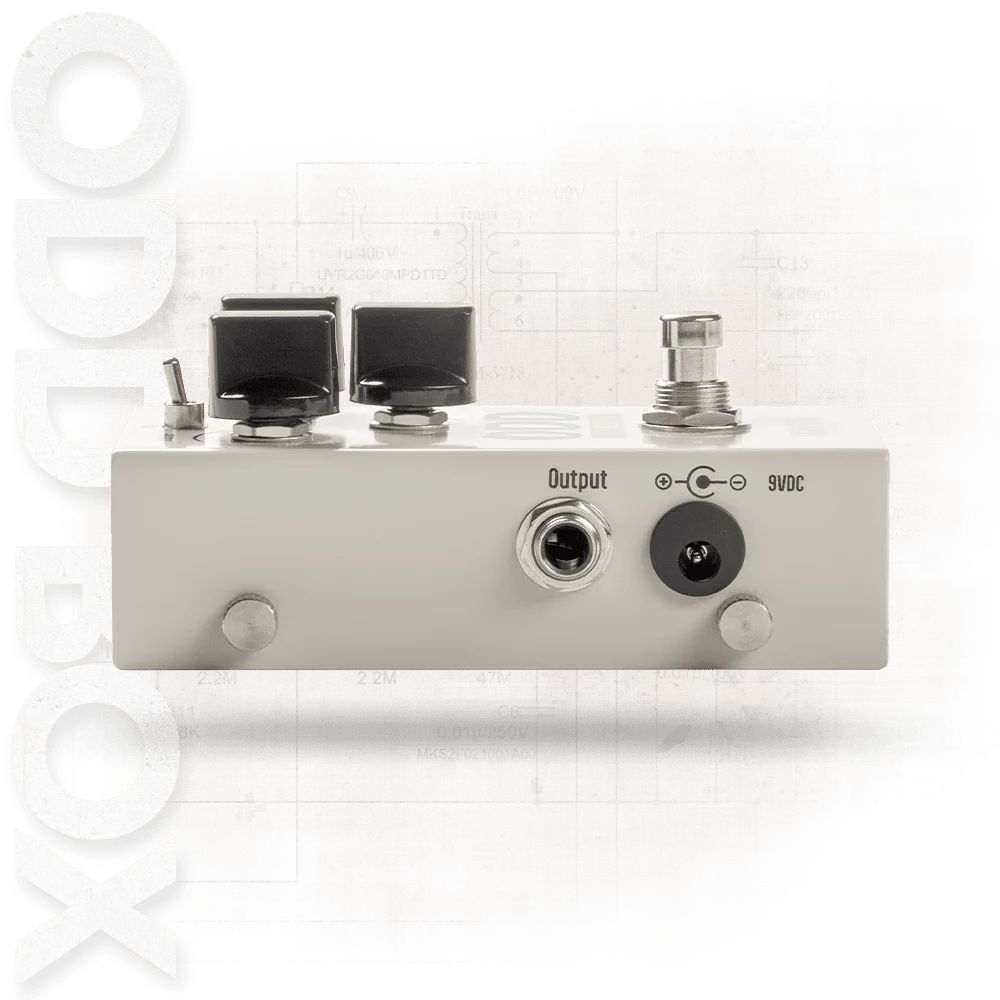

  • 1/4" Input And Output Jacks

  • Dimensions: 4.5" x 2.5" x 1.5"

  • Weight: 0.85 lb

Sound Samples
